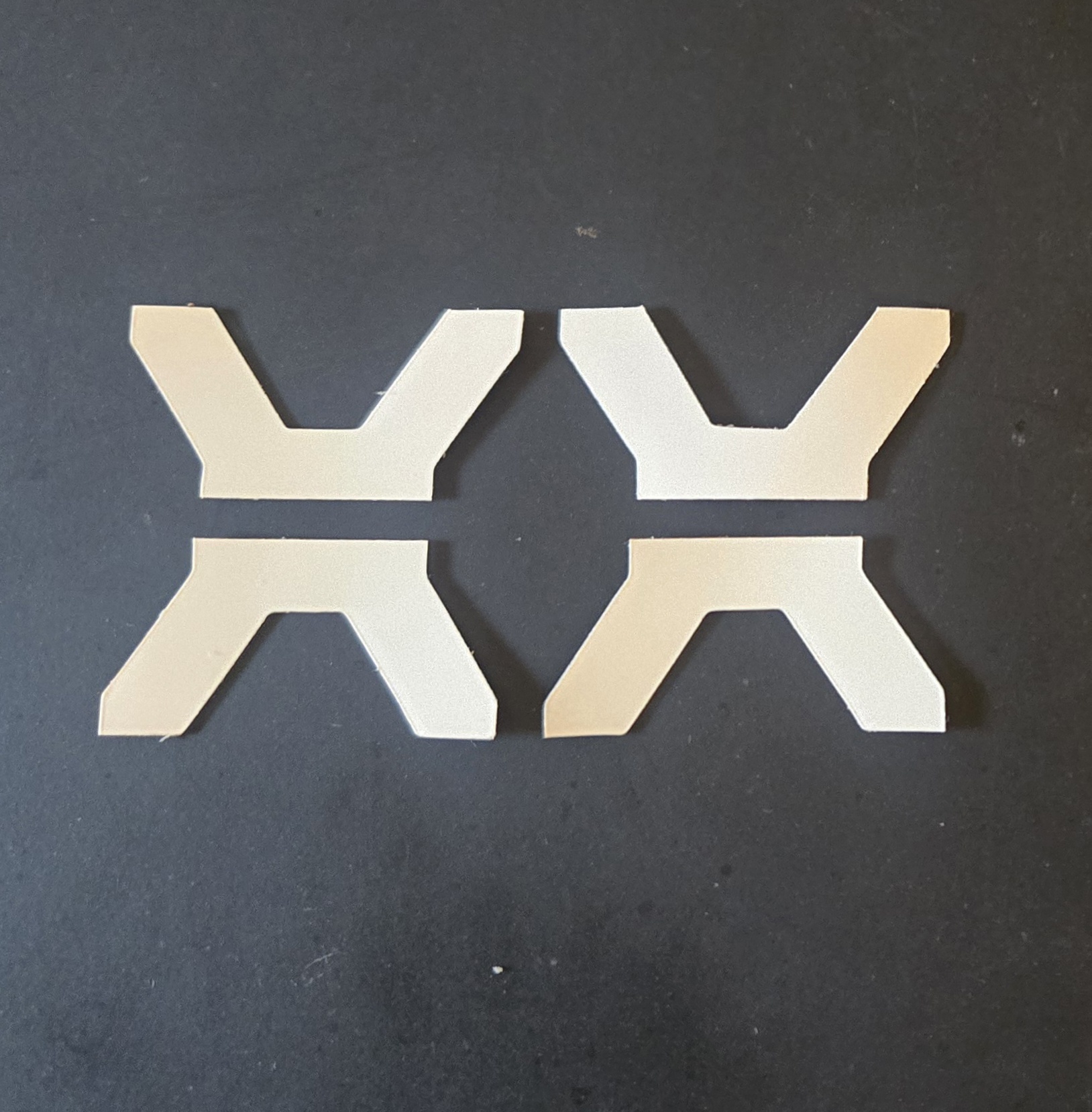

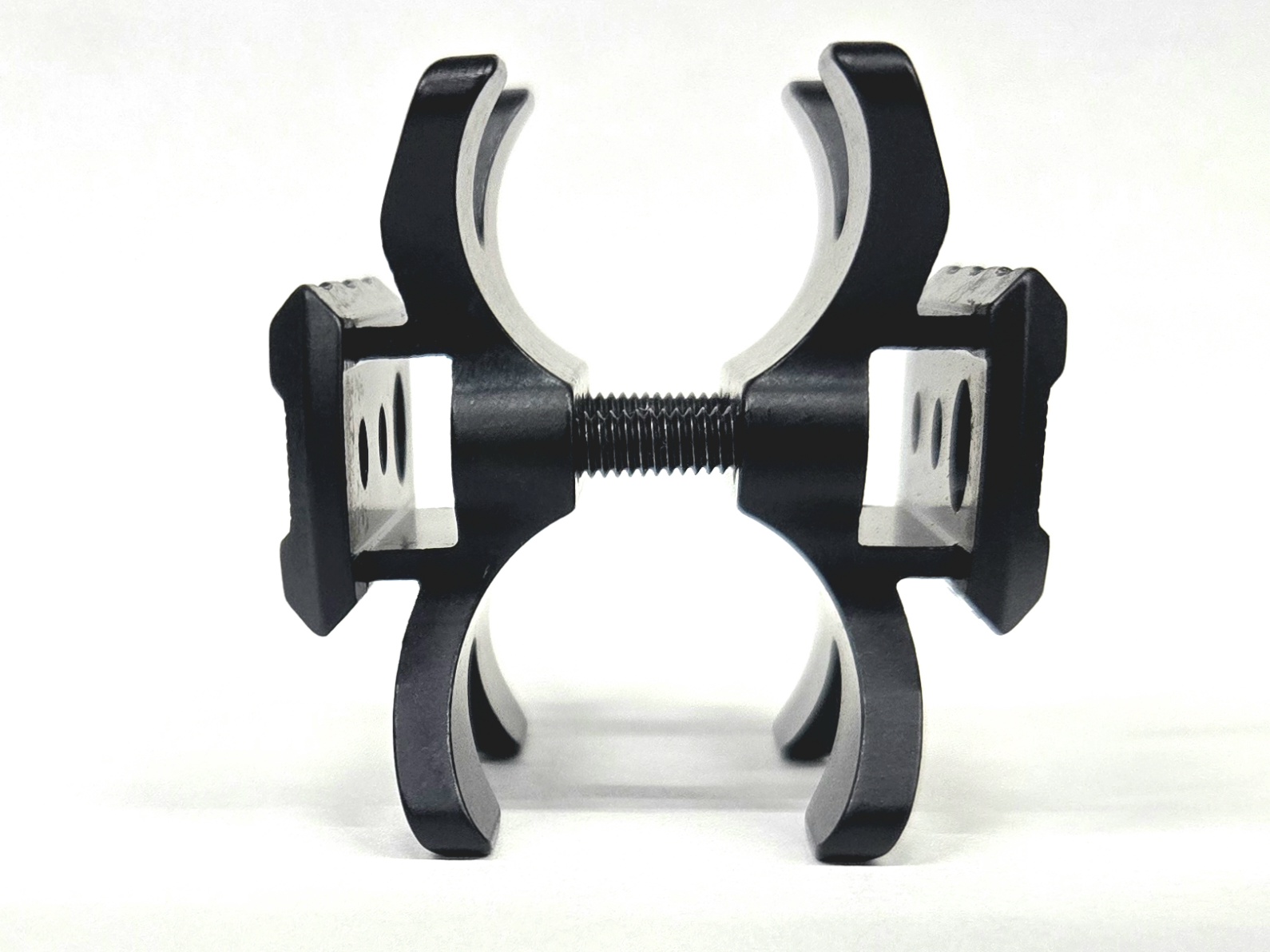

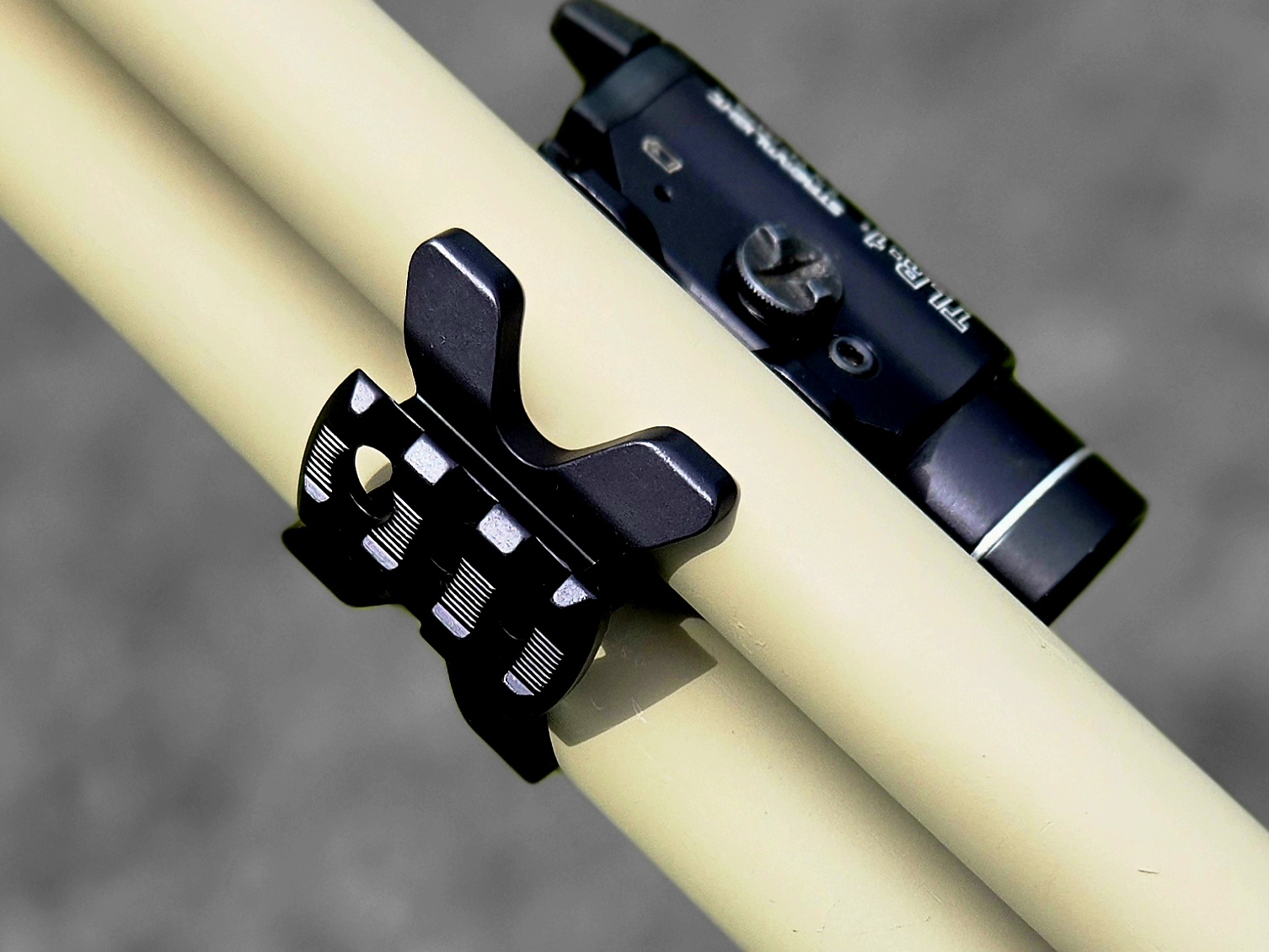

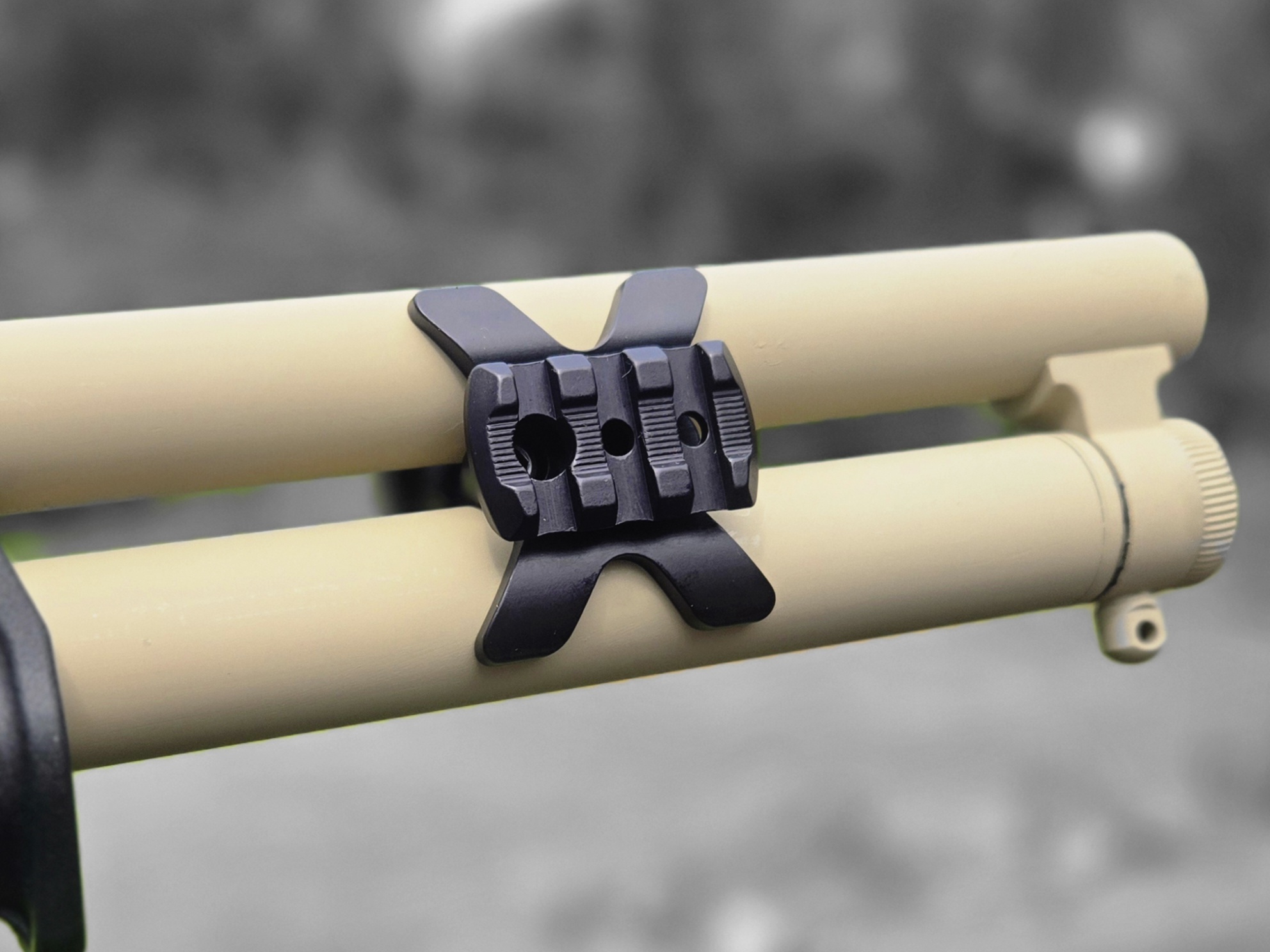

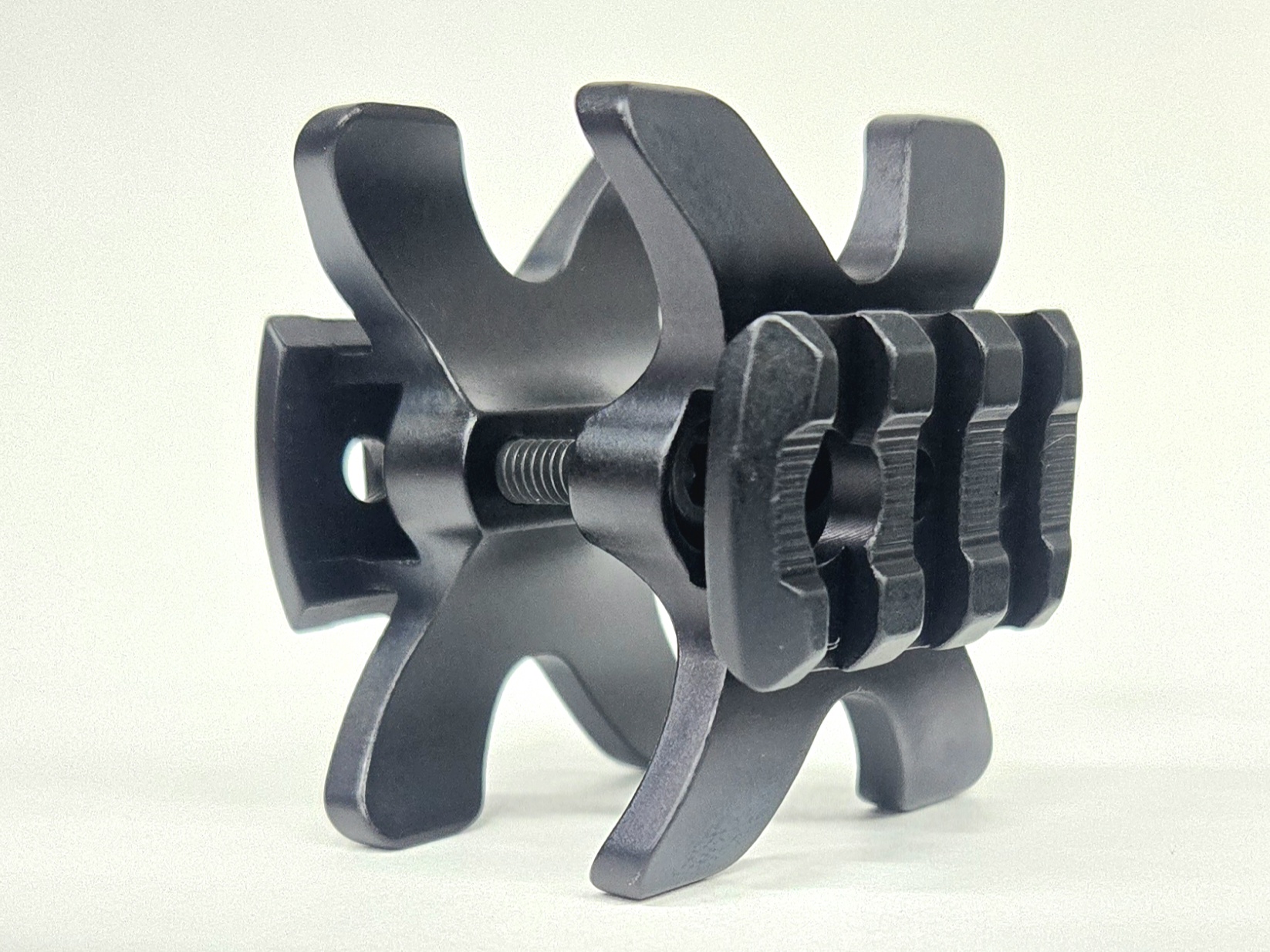

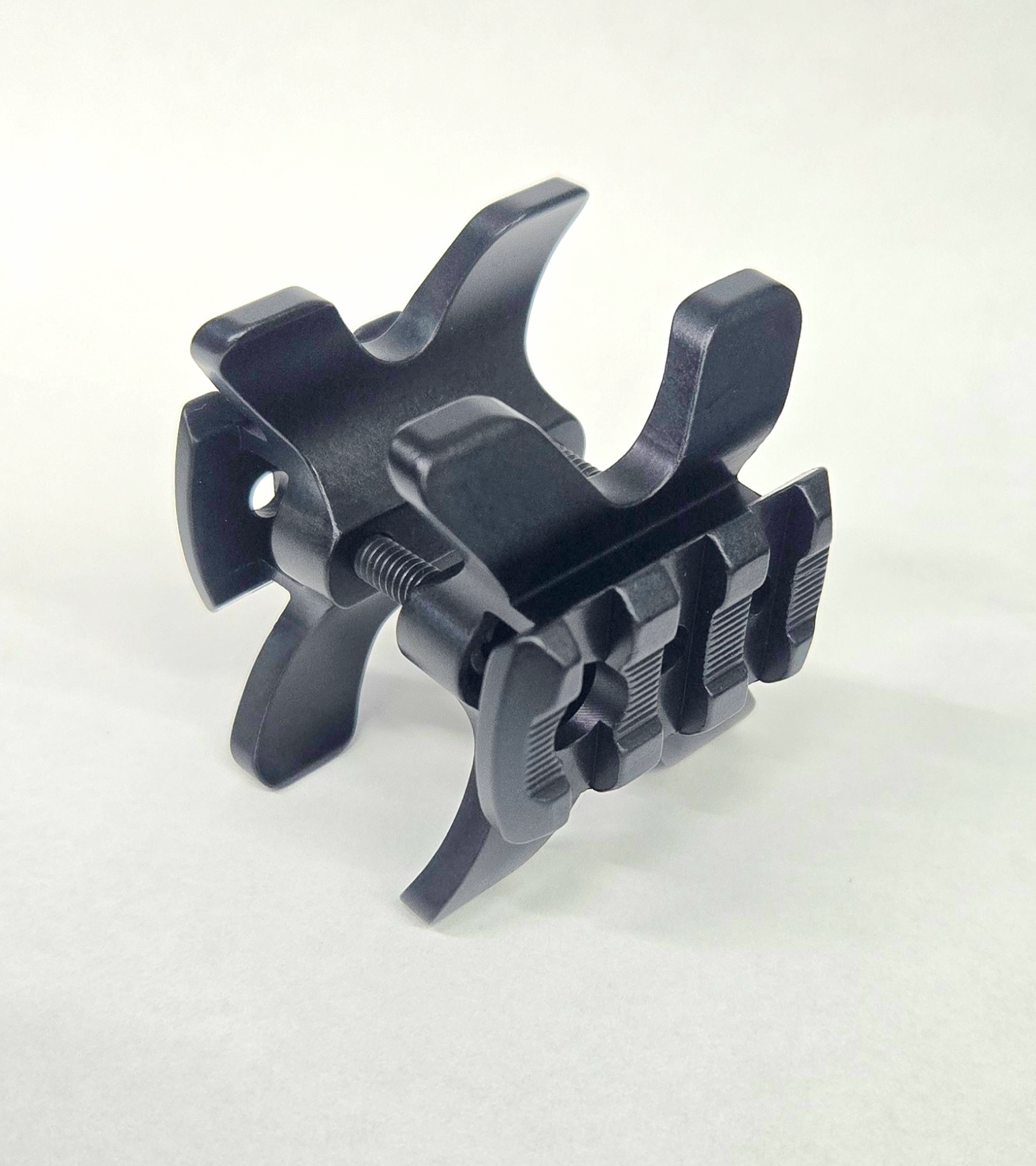

COMING SOON! The Patent Pending CDM Gear ROC-X-PRO series comes in 3 slot, 5 slot and 7 slot configurations. This is a US made aluminum railed barrel clamp that is used to support factory and aftermarket 1″ diameter magazine tubes, and extensions, while providing low profile mounting rails on the left and right side for rail mountable lights and accessories. This upgraded mount rail and clamp half are manufactured as one piece from aluminum and precision CNC machined to size. All threaded holes are press formed into the mount for hardness. The entire mount is then machine finished to soften round edges before we hard coat anodized for durability. The new X configurations fingers at the top and bottom of the clamp allow for use with a barrel rib and/or compensation ports, as well as slight barrel taper and less cross pressure on the magazine tube. Using the included polyurethane X pads top and bottom helps to stop movement under recoil and protects the finish on the shotgun.

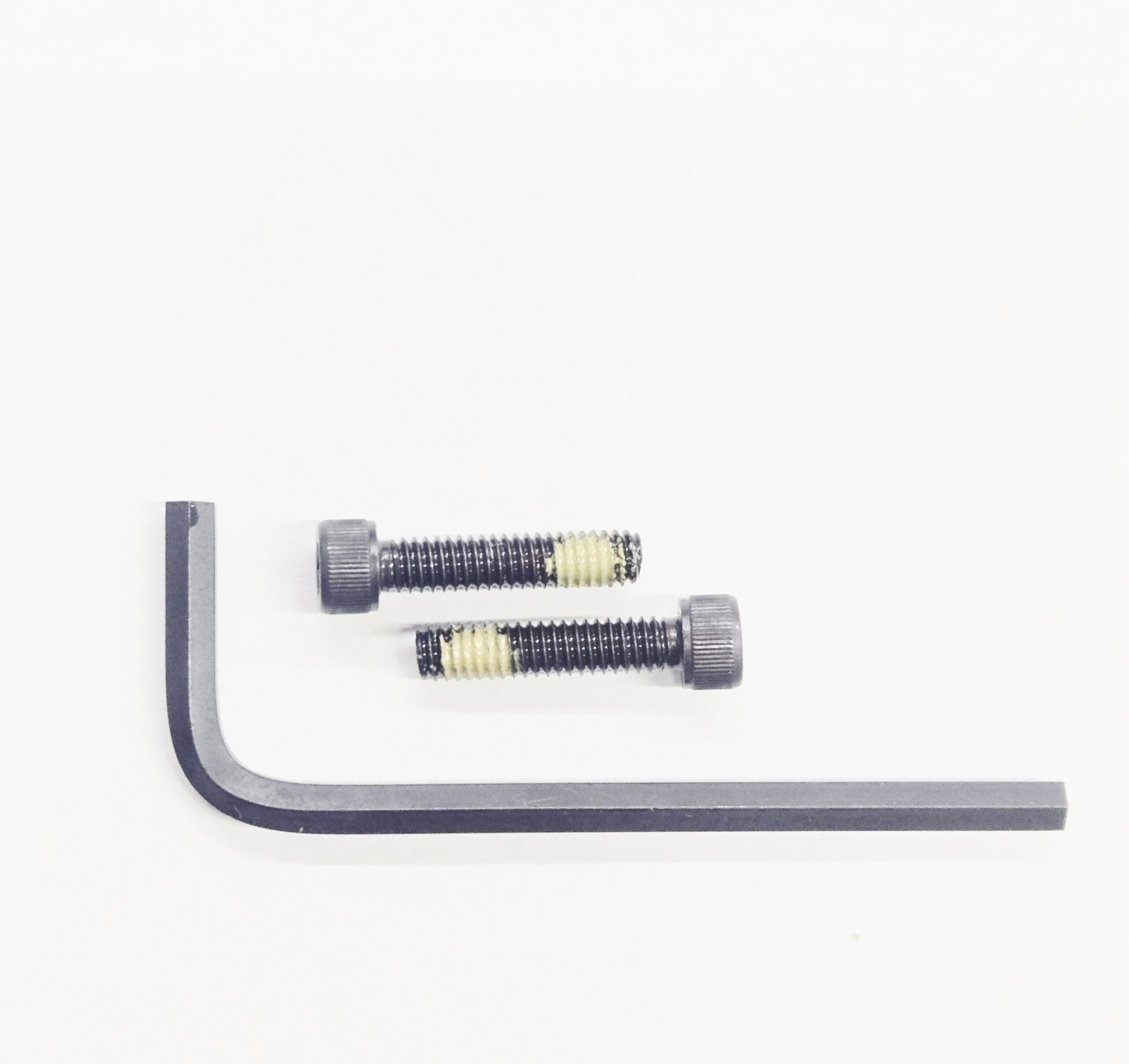

Just 2 socket head cap screws work opposite each other to hold the clamp in place and are included along with a wrench and a built in non-rotational qd socket should you want to add a sling swivel. The mount requires 1 1/2″ of mounting surface without interference from a heat shield. Will not work with heavy walled barrels or magazine tubes larger than 1″.Fits Remington 870, 1100, 1187, Benelli M1/M2/M4/M104, Mossberg 500 7 shot, 590, Winchester 1200, 1300, SXP. Must have 1.25″ of available space on a 1″ magazine tube. Will not work on Benelli M3, SuperNova, Mossberg 590A1 or 930 SPX. May not fit older Remington 870 products with greater than a 1/4″ spacing between the barrel and magazine tube.
NOTE: (will not fit Nordic Components or larger magazine tubes). Sling swivel, light or other accessories are not included.
$49.95
Out of stock
